EAC24SN SAFETY CABINET (NALOXONE)

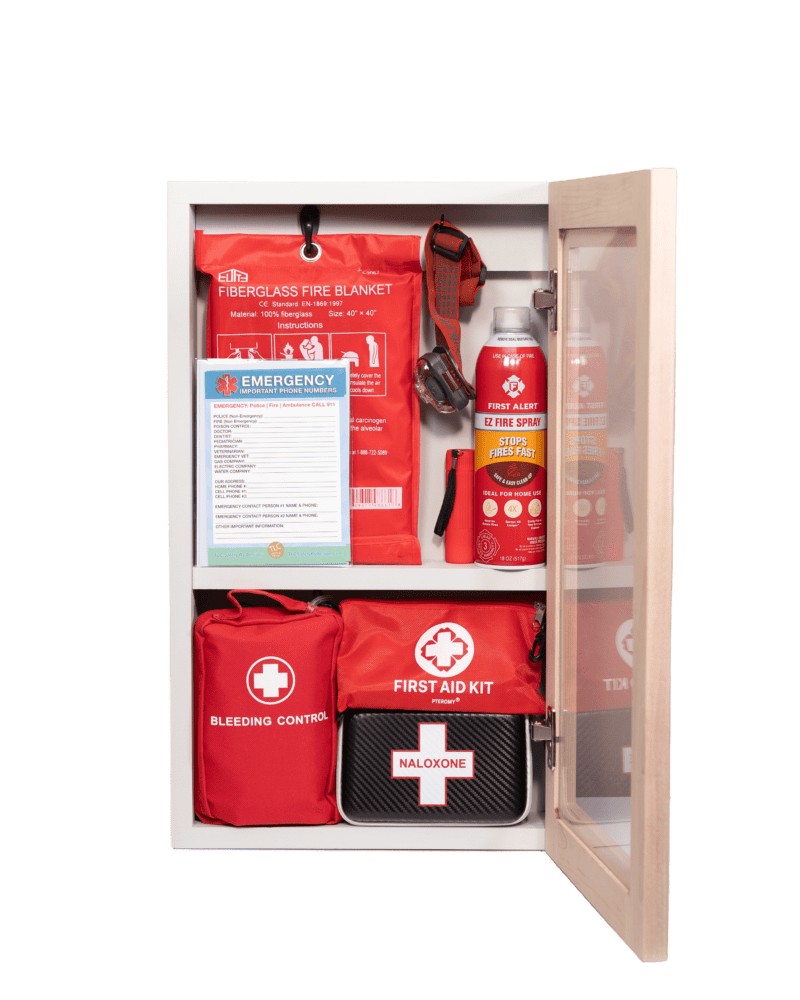

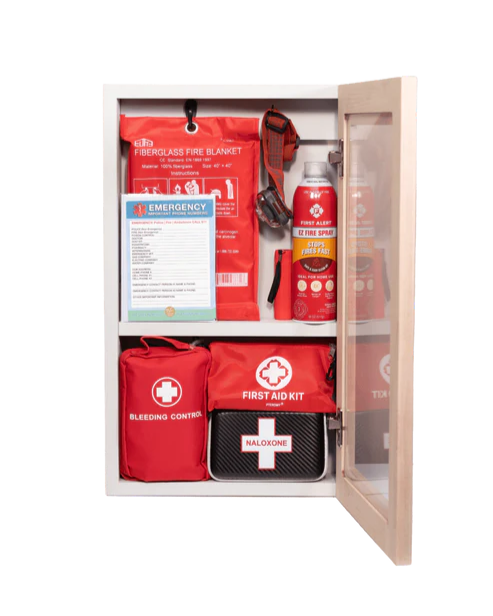

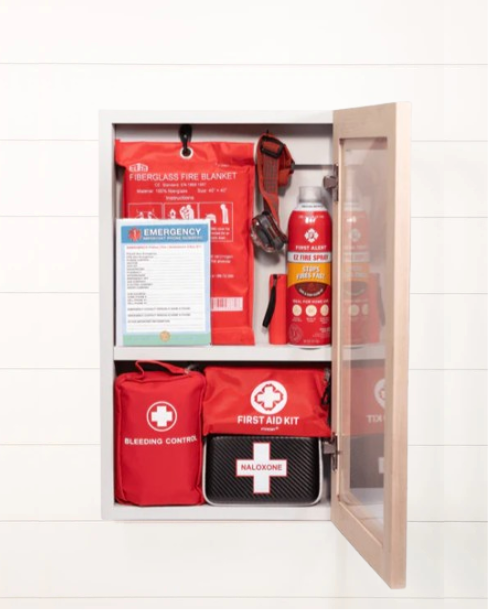

The EAC24SN cabinet is designed to provide immediate access to life-saving emergency supplies. It features a dedicated Naloxone case, ensuring quick deployment of Naloxone spray in overdose scenarios. An integrated compartment securely holds an EpiPen for individuals experiencing severe allergic reactions. The cabinet also houses a comprehensive first aid and bleed control kit, equipped to handle a range of injuries from minor to critical. A hands-free headlamp provides essential illumination for patient care in low-light conditions or safe navigation during power outages. Finally, a readily accessible fire blanket and spray are included for immediate fire suppression

WHAT'S INCLUDED?

• Fire Blanket
• Fire Spray
• Flashlight
• Head Lamp

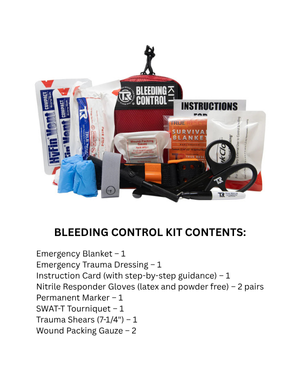

• Bleeding Control Kit
• Emergency contact
• First Aid Kit
• Naloxone Case (Naloxone not included)

SPECIFICATIONS

• External Dimensions: 24″ x 14 ½″ x 3 ¾″ (with Door)
• Internal Dimensions: 23 ⅜" x 12 ⅞" x 2 ¾"
• Space Above Shelf: 12"
• Space Below Shelf: 8 ⅝"
• Weight: 14lbs


INSTALLATION INSTRUCTIONS

Surface Mounting:

1. Locate a Wall Stud: Center the cabinet on a wall stud if possible for maximum stability.

2. Pre-Drill Holes: Use a ⅛” drill bit to pre-drill two installation holes:

• • • One through the center of the top cleat
    • One through the center of the lower part of the cabinet

3. Secure with Screws: Install screws through the cabinet and into the wall stud.

4. If No Stud is Available: Use drywall anchors to secure the cabinet to the wall.

Recess Mounting (Between Wall Studs):

1. Cut Opening: Cut a space in the drywall measuring 24” x 14 ½”.

2. Position Cabinet: Place the cabinet into the opening between wall studs.

3. Secure with Screws: Pre-drill pilot holes through the inside of the cabinet at your desired mounting locations. Install screws into the wall studs on each side.
